Schurter MSM LA Series Metal Pushbutton Switches
Now with 16 A Switching Current at 250 VAC

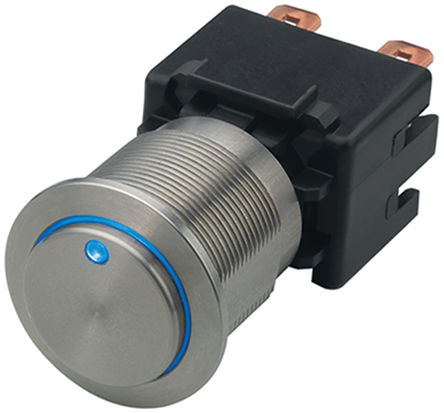

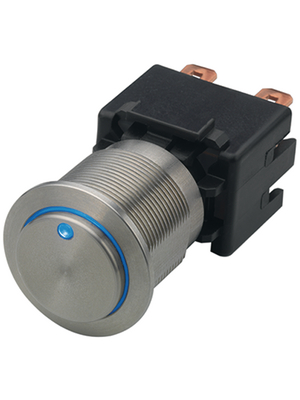

Schurter's latching-action robust metal pushbutton switch, MSM LA is rated 30 VDC and 250 VAC with a maximum switching current of 16 Amps. It features two isolated contacts for 1- or 2-pole switching functions. The switch provides mechanical indication in the ON and OFF positions. The actuator is raised above the switch housing in the resting OFF state and is recessed into the housing when depressed to switch ON. The distinct difference in position makes the mode of operation immediately evident. It also prevents inadvertent switching, in the event that persons or objects lean on the switch. The switch also offers ring illumination in red, green, or blue, which is ideal for use in applications located in dimly lit areas or for night-time use, such as ticketing machines in parking garages or security-access controls on buildings.

Features

Switch Available in Four Versions: Standard (ST), with Lettering (LE), with Point Illumination (PI), with Ring Illumination (RI)

Available with 12 A and 16 A Switching Current

Assembly by Mounting with Nut and Subsequent Clipping of the Switching Element

Equipped with Flat-Pin Plugs to Permit Fast Connection

Applications

Industrial Machinery and Controls

Medical Equipment

Vending Machines

Public Transport

Consumer Electronics

Marine, Automotive, and Aircraft Controls

Home Theater and Audio Equipment
