FN284-2-06 -

Power Entry Module, Compact, 2A, Fast-on/Solder Lug Connections; FN280 Series

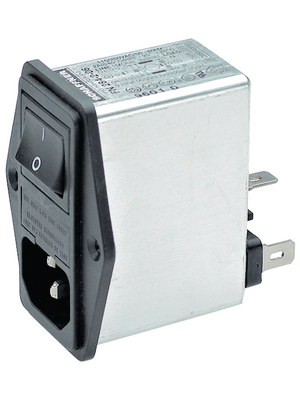

Schaffner FN284-2-06
聲明：圖片僅供參考，請以實物為準！
制造商產品編號：
FN284-2-06
倉庫庫存編號：
70027217
技術數據表：
View FN284-2-06 Datasheet Datasheet
訂購熱線： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！

FN284-2-06產品概述

For general-purpose applications.

  • IEC 950 Compliant
  • Uses Φ5 × 20 mm Fuses
  • 250 VAC Maximum Operating Voltage at 50/60 Hertz
  • 50 to 400 Hertz Operating Frequency
  • 190 μA/Phase Maximum Leakage
  • Fast-On Terminals
  • –25°C to +85°C Temperature Range
  • 1,500,000 Hours MTBF at 40°C, 230 V, Per Mil-HB-217F
  • Medical Version Available

    • FN284-2-06產品信息

      Brand/Series  FN 280 Series
      Capacitance, Cx  220 nF
      Capacitance, Cy  2.2 nF
      Current Rating  2A
      Current, Leakage  373 μA
      Cut Out, Panel  29 × 60 mm
      Gender  Male
      Inductance  7.5 mH
      Mounting Type  Panel Mount/Screw
      Number of Poles  2 (Fuseholder), 2 (Line Switch)
      Resistance  1000 Kilohms
      Schaffner Part Number  284-905
      Temperature, Operating  -25 to +85 °C
      Termination  QC/Solder
      Thickness, Panel  0.031-0.118" (0.8-3mm)
      Type  Filter | Fuse | Switch
      Version  Standard
      Voltage Rating  250 VAC
