FLUKE-771產(chǎn)品概述

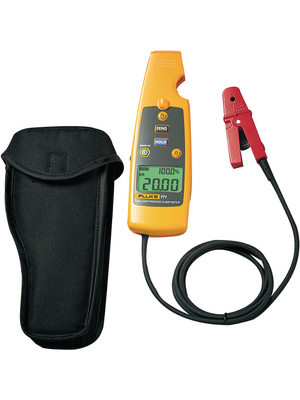

The 772 and 773 expand upon the capabilities of the popular 771 mA Clamp Meter. Measure 4-20 mA signals without breaking the loop with these new, compact clamp meters for PLC and control systems analog I/O. The detachable clamp with extension cable allows you to take measurements in tight locations, and the built-in spot light illuminates hard to see wires in dark enclosures.
Features:
Measure mA Signals for PLC and Control System Analog I/O
Measure 4 to 20 mA Output Signals from Transmitters without Breaking the Loop
Simultaneously Measure mA In-Circuit, 24 V Loop for Powering and Testing Transmitters (773 Only)
Detachable Clamp with Extension Cable for Measurements in Tight Locations
Source, Simulate and Measure mA Signals in Circuit (Break the Loop) (772 and 773)
Measure 10 to 50 mA Signals in Older Control Systems Using the 99.9 mA Range
Hold Function Captures and Displays Changing Measurements
Resolution and Sensitivity to 0.01 mA
Best in Class 0.2% Accuracy
Dual Backlit Display with Both mA Measurement and Percent of 4 to 20 mA Span
Automatic Battery Savings Features, Can be Disabled if Desired
Power, 15 Minutes Automatic Power Down
Backlight and Spotlight, 2 Minutes, Automatic Off
Includes: TL75 Test Leads, AC 72 Detachable Clip, TL 940 Mini Hook Test Leads and Hanging Tool with Velcro Strap. (772 and 773) All Include a Soft Carrying Case
